Brick-compatible mechanisms

Idler Gear Direction Reverser

Add a middle idler gear to change output direction without changing the ideal speed ratio.

The middle gear looks busy, but it does not alter the ideal ratio. It changes which way the last gear turns and lets two distant shafts communicate through one extra mesh.

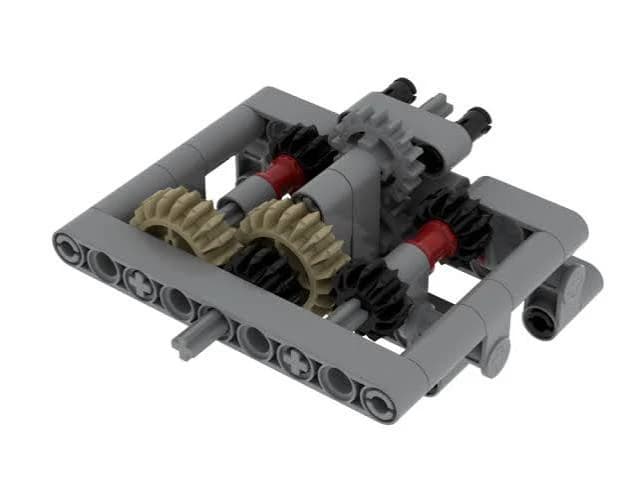

Brick-built multi-gear assembly showing intermediate gears routing rotation. The idler-only mechanism in this guide is simpler and differs in layout.Image supplied by the site owner.

Difficulty: Beginner
Build time: 40-60 min
Estimated cost: $0-$10
Age range: 10-16
Workspace: A clear table about 90 cm wide

The finish line

What you will build

The input and output gears rotate in the same direction at nearly the same speed when they have equal tooth counts, while the idler turns opposite them.

Learning goals

Identify how clockwise rotation of the first gear produces clockwise rotation of the final gear.
Construct and explain a rotary-to-rotary with direction restoration system.
Measure how the idler tooth count changes performance.
Diagnose losses caused by two tooth meshes and idler axle friction.

Before you build

Materials, tools, and safety

Reuse-material cost: $0-$3 with reused materials. Supervision: Adult help recommended for sharp or heated tools.

12-24 × rigid brick-compatible frame elementsHold axle or pivot locations in a fixed relationship2-6 × straight axles or pivot pins in assorted lengthsCarry rotating and linked parts6-12 × bushings, collars, or spacersLimit side movement without squeezing joints3 × equal-size spur gearsCreate a visible one-to-one direction test1 × hand crankTurn the input consistently3 × paper arrow flagsShow direction on every axle

Tools

Ruler
Removable tape for motion marks

Low-cost swaps

Use equivalent brick-compatible parts from any kit.
Use cardboard beams and straw bearings for a larger demonstration model.
Use a smaller or larger idler and confirm that the first-to-last ideal ratio stays one-to-one.

Project-specific safety

Keep fingers, hair, and loose sleeves clear of moving parts.
Turn the mechanism by hand; do not attach a high-speed motor.
Do not reposition the idler while the input is moving; three exposed meshes create several pinch points.

Orient the build

Place the build so clockwise rotation of the first gear is on your left and clockwise rotation of the final gear is on your right. Call the side facing you the front, the far side the back, the tabletop the bottom, and the opposite face the top.

Build it

Step-by-step instructions

Step 1
Square a three-shaft frame
Build parallel front and back rails joined by at least three cross braces.
Leave room for three gears in one straight row.
Step 2
Mount the input gear
Support its axle on both rails and attach the crank outside the frame.
Confirm the gear face is vertical and the axle spins freely.
Step 3
Position the idler
Mesh a second equal gear with the input at half-tooth depth.
Build supports only after finding the smooth center distance.
Builder checkpoint: After position the idler, the first subassembly should stay aligned when handled gently.
Step 4
Locate the output
Mesh the third gear with the idler on the far side.
Keep all three gear centers on the same horizontal line.
Watch for: If this stage binds or drifts, inspect backlash before adding more parts.
Step 5
Add side collars
Limit axle sliding while leaving a thin visible running gap.
Turn each gear separately before engaging all three.
Step 6
Attach direction flags
Point three contrasting arrows upward at the same starting angle.
Make the flags short enough to clear the frame.
Builder checkpoint: After attach direction flags, operate the build slowly and confirm that clockwise rotation of the final gear begins without binding.
Step 7
Trace one input turn
Rotate the crank clockwise once and name each shaft direction aloud.
Repeat slowly if any flag completes an uncertain partial turn.
Step 8
Change idler size
Replace only the middle gear and shift its supports to restore correct mesh.
Compare direction and output turns with the original trial.
Builder checkpoint: At the final checkpoint, The input and output gears rotate in the same direction at nearly the same speed when they have equal tooth counts, while the idler turns opposite them.

See the engineering

Why it works

Input: clockwise rotation of the first gear
Output: clockwise rotation of the final gear
Motion: rotary-to-rotary with direction restoration
Energy losses: two tooth meshes, idler axle friction, loose spacing, backlash

Idler Gear Direction Reverser concept diagram with labeled input, output, and motion arrows. — The rotary-to-rotary with direction restoration motion path, with the main efficiency losses called out.

Why this works

Direction through gear meshes

Each external gear mesh reverses rotation. Two meshes create two reversals, so the final gear turns in the same direction as the first while the ideal ratio depends only on first and last tooth counts.

Look for: Place arrow flags on all three axles and compare their directions during one slow input turn.

Where the energy goes

Efficiency and losses

The ideal model leaves out two tooth meshes, idler axle friction, loose spacing, backlash. These effects turn some input energy into heat, sound, vibration, or unwanted motion, so measured performance will be lower than an ideal calculation.

Look for: Run the build slowly and locate the first place where two tooth meshes becomes visible or audible.

Math bite

Ignore the idler in the ideal ratio

Formula: output speed / input speed = input teeth / output teeth

Input gear = 24 teeth
Output gear = 24 teeth

Substitute: output/input = 24/24 = 1

Result: One ideal output turn occurs per input turn.

The idler changes direction relationships and spacing, not the first-to-last ratio.

Real output lags slightly because two meshes add friction and backlash.

Brick-building meme reading: Chuck Norris does not build LEGO; he roundhouses the bricks into sculptures. — The idler contributes direction, spacing, and absolutely no ratio drama.Image supplied by the site owner.

Make it behave

Test, troubleshoot, and tune

Controlled test

Start here: Turn the crank through five slow input rotations with no load.

Success looks like: The output completes about five turns in the same direction while the idler turns opposite.

Measure: Full turns and direction for every axle.

Change: the idler tooth count

Keep constant: equal input and output gears, crank rate, frame, and markers

equal-size idler
smaller idler
larger idler

Troubleshooting guide
Symptom	Likely cause	Confirm it	Fix
The output turns opposite the input	Only one active mesh reaches the output	Trace which gears actually touch	Restore both input-idler and idler-output meshes
The idler climbs out of mesh	Its support is too flexible or spacing is wide	Apply light output resistance and watch the idler center	Brace both sides and move the support closer
One gear rubs the frame	Its collar position is forcing side contact	Slide the axle while turning by hand	Reposition collars with a paper-thin clearance
Output turns fewer times than input	Friction or skipped teeth interrupt motion	Mark teeth and listen for clicks	Realign centers and test each mesh separately

Choose your tradeoff

Choose the smallest idler that bridges the required distance without crowding the other shafts. Larger idlers need more frame clearance, while every extra mesh adds friction and backlash.

Keep experimenting

Try another version

Easier

Two-gear baseline

Remove the idler and observe the single reversal.

Performance

Offset shafts

Use two idlers to route motion around a frame obstacle and predict final direction.

Creative

Direction sign

Attach a pointer that labels clockwise and counterclockwise output.

Build together

Classroom and access options

Classroom version

Teams can compare the idler tooth count while keeping equal input and output gears, crank rate, frame, and markers. Assign builder, tester, recorder, and explainer roles; have each team predict the result before collecting three trials.

Access adaptations

Use high-contrast tape to distinguish input and output parts.
Replace a small crank with a wider handle for an easier grip.
Add raised tape arrows to the flags so direction can be checked by touch while stopped.

Reflect on the design

How did the idler tooth count change the measured result?
Where did two tooth meshes affect the build most strongly?
What evidence shows that direction through gear meshes explains the motion?
Which change would improve clockwise rotation of the final gear without creating a new problem?

Glossary

Direction through gear meshes: Each external gear mesh reverses rotation.
Input: The action or energy supplied to a system; here it is clockwise rotation of the first gear.
Output: The useful response produced by a system; here it is clockwise rotation of the final gear.
Efficiency: The fraction of input energy that becomes useful output instead of friction, sound, heat, or unwanted motion.

Build your dreams

One build can start the next.

Share what you learned, change one variable, and help another builder understand what worked.

Explore more guides

Sources and build notes

An original BrickLabClips interpretation of a standard mechanical mechanism.

Mechanism verification: Standard kinematics were checked for motion direction, constraint, clearance, and likely friction points.

Written and edited by BrickLabClips. Published 2026-07-22; updated 2026-07-22.
