Simple Motorized Fan

Build a guarded low-voltage fan, switch it with a transistor, and compare airflow at two safe blade pitches.

A small motor turns electrical energy into rotation, but the fan only moves useful air when the blades are balanced, angled, and safely guarded.

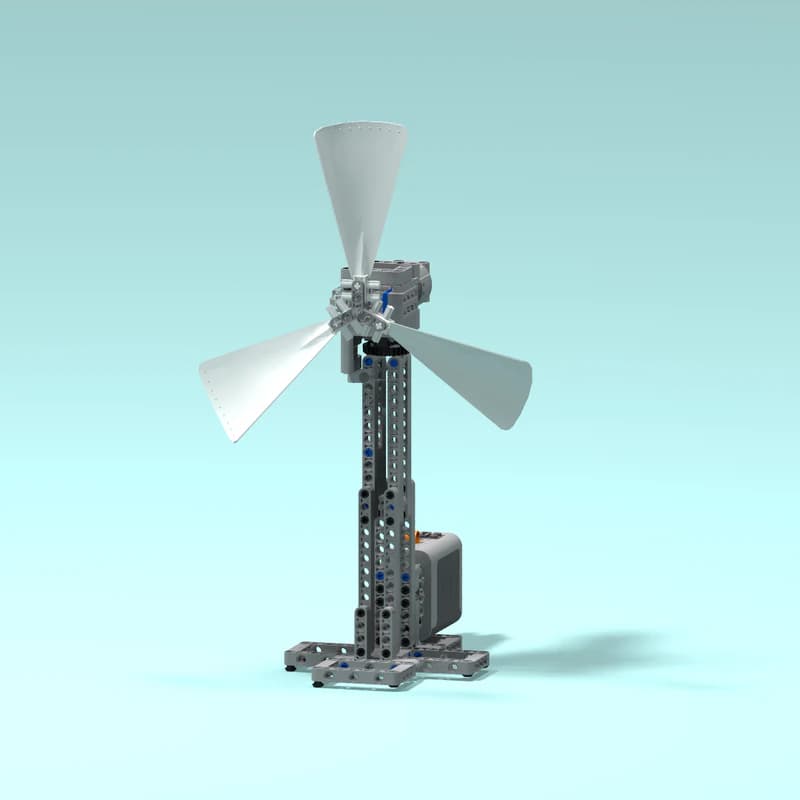

Rendered brick-compatible standing fan with three blades, a motor, and a rigid support frame.
Rendered brick-compatible fan example illustrating motor-driven rotation and blade pitch. The guarded low-voltage fan in this guide uses a different frame.Image supplied by the site owner.
Difficulty
Beginner
Build time
45-70 min
Estimated cost
$0-$12
Age range
11-16
Workspace
A clear table about 90 cm wide

The finish line

What you will build

The guarded fan starts from a switch, runs for one minute without warming, and moves a tissue strip at least 20 cm away.

Learning goals

  • Identify how switch signal and 3-volt battery current produces motor rotation and directed airflow.
  • Construct and explain a electrical energy-to-rotary blade motion system.
  • Measure how blade pitch changes performance.
  • Diagnose losses caused by bearing friction and blade drag.

Before you build

Materials, tools, and safety

Reuse-material cost: Usually under $5 with an existing kit. Supervision: Adult guidance recommended for wiring and cutting.

Tools

  • Small screwdriver
  • Wire stripper
  • Multimeter
  • Low-temperature glue gun or tape

Low-cost swaps

  • Use alligator-clip leads for a no-solder version.
  • Build and test the mechanism manually before adding electronics.
  • Use a commercial guarded 3 V motor-and-propeller module rather than making a blade.

Wiring table

FromToPurpose
Battery +3 VMotor +Supply motor voltage
Motor -MOSFET drainSwitch motor return current
MOSFET sourceBattery negativeComplete common return
DiodeAcross motor, stripe to +3 VClamp inductive voltage
Button and 10 kΩ resistorMOSFET gate and groundCreate a defined on/off command

Project-specific safety

  • Use only the listed low-voltage battery supply; never use mains electricity.
  • Disconnect power before changing wires and stop if a motor, wire, or battery becomes warm.
  • Never run an exposed blade; disconnect power before adjustments, secure the guard, and stop if the motor, transistor, wire, or battery becomes warm.

Orient the build

Place the build so switch signal and 3-volt battery current is on your left and motor rotation and directed airflow is on your right. Call the side facing you the front, the far side the back, the tabletop the bottom, and the opposite face the top.

Build it

Step-by-step instructions

  1. Step 1

    Build the motor stand

    Clamp the motor body in a low cardboard cradle without covering ventilation holes.

    Point the shaft horizontally.

  2. Step 2

    Install the guard

    Fix a rigid mesh cylinder around the full blade path with 15 mm clearance.

    Make the guard removable only with tools.

  3. Step 3

    Wire the power stage

    Connect battery positive to motor positive and motor negative to MOSFET drain.

    Leave the battery pack switched off.

    Builder checkpoint: After wire the power stage, the first subassembly should stay aligned when handled gently.

  4. Step 4

    Add protection

    Place the diode across motor terminals with its stripe at positive.

    Connect source to battery negative.

    Watch for: If this stage binds or drifts, inspect imbalance vibration before adding more parts.

  5. Step 5

    Build the button input

    Connect the button from battery positive to gate and 10 kΩ from gate to ground.

    Label the common ground.

  6. Step 6

    Check before blades

    Use a multimeter for shorts, then pulse the bare motor for one second.

    Confirm correct direction and no heating.

    Builder checkpoint: After check before blades, operate the build slowly and confirm that motor rotation and directed airflow begins without binding.

  7. Step 7

    Fit and enclose the propeller

    Press the balanced propeller onto the shaft and close the guard completely.

    Rotate by hand to confirm clearance.

  8. Step 8

    Run airflow trials

    Operate for 10, 30, then 60 seconds while checking temperature.

    Measure the farthest tissue movement.

    Builder checkpoint: At the final checkpoint, The guarded fan starts from a switch, runs for one minute without warming, and moves a tissue strip at least 20 cm away.

See the engineering

Why it works

Input
switch signal and 3-volt battery current
Output
motor rotation and directed airflow
Motion
electrical energy-to-rotary blade motion
Energy losses
bearing friction, blade drag, electrical resistance, imbalance vibration
Simple Motorized Fan concept diagram with labeled input, output, and motion arrows.
The electrical energy-to-rotary blade motion motion path, with the main efficiency losses called out.

Why this works

Motor-driven airflow

Current in the motor windings creates magnetic forces that turn the shaft. Angled blades push air backward and produce a forward airflow through the guard.

Look for: Hold a tissue strip at measured distances and compare movement with shallow and steeper blade pitch.

Where the energy goes

Efficiency and losses

The ideal model leaves out bearing friction, blade drag, electrical resistance, imbalance vibration. These effects turn some input energy into heat, sound, vibration, or unwanted motion, so measured performance will be lower than an ideal calculation.

Look for: Run the build slowly and locate the first place where bearing friction becomes visible or audible.

Math bite

Estimate motor electrical power

Formula: power = voltage × current

  • Voltage = 3.0 V
  • Running current = 0.20 A

Substitute: power = 3.0 × 0.20 = 0.60 W

Result: The motor draws about 0.60 watts electrically.

Only part becomes useful airflow.

Current changes with blade load and battery condition.
Brick-building meme reading: Chuck Norris does not build LEGO; he roundhouses the bricks into sculptures.
The fan moved plenty of air after the propeller agreed to face the useful direction.Image supplied by the site owner.

Make it behave

Test, troubleshoot, and tune

Controlled test

Start here: Pulse the bare motor for one second before fitting the guarded propeller.

Success looks like: The fan runs one minute without warming and moves tissue at 20 cm.

Measure: Current, temperature by careful touch after power-off, noise, vibration, and airflow distance.

Change: blade pitch

Keep constant: motor, voltage, guard, tissue, room, and run time

  1. shallow pitch
  2. medium pitch
  3. manufacturer propeller pitch
Troubleshooting guide
SymptomLikely causeConfirm itFix
The motor does not startGate is low or ground is missingMeasure gate-to-source voltage while pressedReconnect button and common ground
The transistor warmsMOSFET is unsuitable or motor is stalledMeasure current with blade removedUse a rated logic MOSFET and clear obstruction
The fan vibratesPropeller is bent or off-centerRotate slowly by handReplace and reseat the balanced propeller
Airflow is weakRotation is backward or pitch is lowCheck tissue on both guard sidesReverse motor leads with power off or use correct propeller

Choose your tradeoff

Reduce vibration and guard rubbing before increasing pitch. Steeper blades can move more air but demand more current and may stall a small motor.

Keep experimenting

Try another version

Easier

Commercial module

Measure airflow from a pre-guarded fan.

Performance

Two-speed control

Add a rated series resistor or PWM controller.

Advanced

Efficiency proxy

Compare airflow distance with measured electrical power.

Build together

Classroom and access options

Classroom version

Teams can compare blade pitch while keeping motor, voltage, guard, tissue, room, and run time. Assign builder, tester, recorder, and explainer roles; have each team predict the result before collecting three trials.

Access adaptations

  • Color-code and label every wire at both ends.
  • Use clip leads, larger controls, and pre-crimped connectors when fine motor work is difficult.
  • Use a large pushbutton, pre-crimped leads, and a tactile mark on the guarded airflow side.

Reflect on the design

  1. How did blade pitch change the measured result?
  2. Where did bearing friction affect the build most strongly?
  3. What evidence shows that motor-driven airflow explains the motion?
  4. Which change would improve motor rotation and directed airflow without creating a new problem?
Glossary
Motor-driven airflow
Current in the motor windings creates magnetic forces that turn the shaft.
Input
The action or energy supplied to a system; here it is switch signal and 3-volt battery current.
Output
The useful response produced by a system; here it is motor rotation and directed airflow.
Efficiency
The fraction of input energy that becomes useful output instead of friction, sound, heat, or unwanted motion.

Build your dreams

One build can start the next.

Share what you learned, change one variable, and help another builder understand what worked.

Explore more guides

Sources and build notes

A platform-agnostic low-voltage robotics or electronics project with original assembly guidance.

  • Low-voltage design review: Battery voltage, polarity, component roles, current paths, and motor or LED protection were editorially checked.

Written and edited by BrickLabClips. Published 2026-07-22; updated 2026-07-22.
